Material number 587788

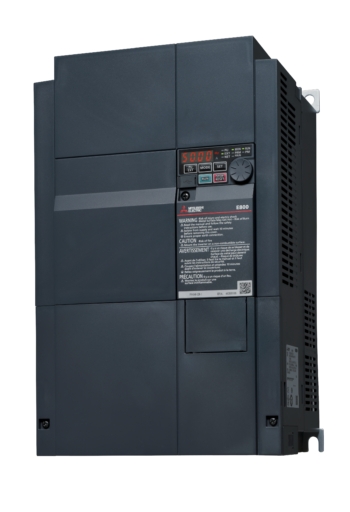

Inverter; Pn:18,5-22kW;3x380-480V;In max:45A;( 18,5kW;38A );RS-485;IP20, The Mitsubishi FR-E840-0380-4-60 is a powerful and compact variable frequency drive ( VFD ) from the advanced FR-E800 series, engineered for medium to heavy-duty industrial applications. It delivers precise motor control, energy efficiency, and seamless integration into modern automation systems. With a power rating of 18.5kW ( Normal Duty ) up to 22kW ( Light Duty ) and 3-phase 380–480V input, this inverter is ideal for industries that require reliable performance, high torque output, and efficient motor speed control. Its advanced control technology ensures stable operation even under demanding load conditions. Part Number: FR-E840-0380-4-60
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 45 |
| Rated Output Current ND (A) | 38 |
| Rated Motor Capacity LD (kW) | 22 |
| Rated Motor Capacity ND (kW) | 18,5 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 510 |
| Power Loss ND (W) | 348 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
|---|---|
| Weight (kg) | 11 |
| Width (mm) | 220 |
| Height (mm) | 350 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 90,00 |
| Cardboard (g) | 750,00 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 6,77 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 119313-12-1, 540-97-6, 541-02-6, 71868-10-5, 7439-92-1, 80-05-7, 556-67-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
