Material number 334870

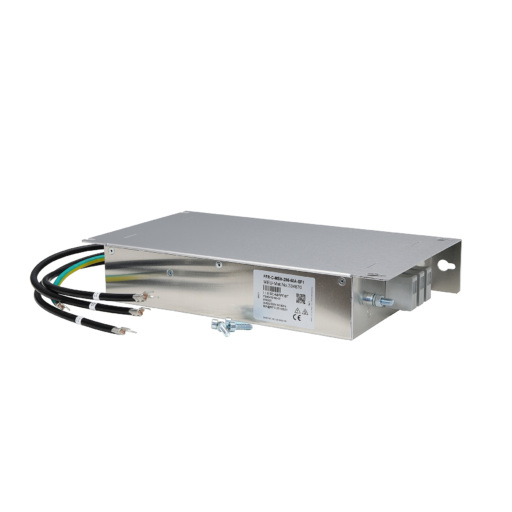

Radio Noise Filter for FR-CS84-230 to 295-60; C1: 20m, C2: 100m
| Type | RADIO NOISE FILTER |
|---|---|
| Series | FR-CS80 SERIES |
| Applicable Inverter | FR-CS84-230–295 |
| Rated Current (A) (fa_ger_79) | 50 |
| Power Loss (W) | 26 |
| Leakage Current (mA) | 6,89 |
| Protection Class | IP00 |
| Depth (mm) | 56 |
|---|---|
| Weight (kg) | 2,6 |
| Width (mm) | 182 |
| Height (mm) | 318 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 540,32 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 84 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
