Material number 587787

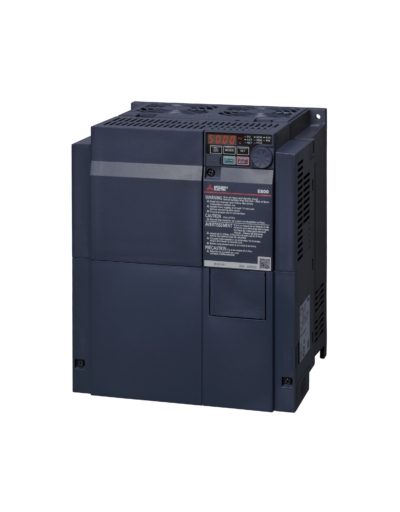

Inverter; Pn:15-18,5kW;3x380-480V;In max:41A;(15kW;30A);RS-485;IP20, The Mitsubishi FR-E840-0300-4-60 VFD from the advanced E800 series is a compact, high-efficiency variable frequency drive (VFD) engineered for modern industrial automation systems. Designed for space-constrained control panels, this 15kW inverter delivers precise motor control, reduced energy consumption, and consistent performance across a wide range of applications. Built with Mitsubishi’s latest drive technology, the E800 series ensures stable torque output, fast dynamic response, and seamless integration, making it ideal for OEMs, system integrators, and industrial operations.
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 41 |
| Rated Output Current ND (A) | 30 |
| Rated Motor Capacity LD (kW) | 18,5 |
| Rated Motor Capacity ND (kW) | 15 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 486 |
| Power Loss ND (W) | 321 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
|---|---|
| Weight (kg) | 4,9 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 91,4 |
| Cardboard (g) | 0,0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 6,8 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 540-97-6, 541-02-6, 71868-10-5, 7439-92-1, 556-67-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
