Material number 587786

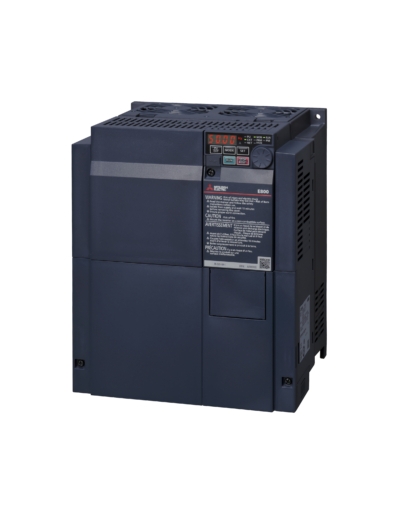

Inverter; Pn:11-15kW;3x380-480V;In max:35A;( 11kW;23A );RS-485;IP20, The Mitsubishi FR-E840-0230-4-60 is a versatile and high-performance variable frequency drive ( VFD ) from the advanced FR-E800 series, designed for general-purpose industrial automation. With a power rating of 11kW ( Normal Duty ) up to 15kW ( Light Duty ) and 3-phase 380–480V input, it delivers reliable motor control, energy efficiency, and seamless integration across applications such as pumps, HVAC systems, conveyors, and manufacturing equipment. Engineered for consistent industrial performance, this inverter features advanced control technology and built-in communication for smooth operation, reduced energy consumption, and easy integration into modern automation systems. It is an ideal solution for industries requiring dependable and flexible motor speed control in everyday operations. Product Part Number: FR-E840-0230-4-60
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 35 |
| Rated Output Current ND (A) | 23 |
| Rated Motor Capacity LD (kW) | 15 |
| Rated Motor Capacity ND (kW) | 11 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 410 |
| Power Loss ND (W) | 239 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
|---|---|
| Weight (kg) | 4,8 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 91,4 |
| Cardboard (g) | 0,0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 6,8 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 540-97-6, 541-02-6, 71868-10-5, 7439-92-1, 556-67-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
