Material number 500113

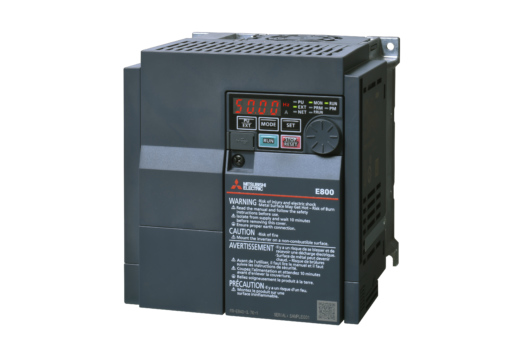

Inverter; Pn:2,2-3kW;3x380-480V;In max:6,9A;(2,2kW;6A);RS-485;IP20, The Mitsubishi FR-E840-0060-4-60 is a compact and high-performance 2.2kW variable frequency drive ( VFD ) from the advanced FR-E800 series, designed for versatile industrial automation applications. With 3-phase 380–480V input, it delivers precise motor control, stable operation, and energy-efficient performance, making it ideal for systems where reliability, flexibility, and space optimization are essential. Equipped with sensorless vector control and built-in RS-485 ( Modbus ) communication, the FR-E840-0060-4-60 ensures seamless integration into PLC-based control systems. It is widely used in pumps, HVAC systems, conveyors, packaging machines, and manufacturing equipment, providing optimized motor performance, reduced energy consumption, and easy installation in compact control panels.
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 6,9 |
| Rated Output Current ND (A) | 6 |
| Rated Motor Capacity LD (kW) | 3 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 88 |
| Power Loss ND (W) | 75 |
| Protection Class | IP20 |
| Depth (mm) | 135 |
|---|---|
| Weight (kg) | 1,8 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 215 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 5 |
| Wood (g) | 0 |
| Other paper (g) | 17 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 556-67-2, 1317-36-8, 540-97-6, 541-02-6, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
