Material number 500111

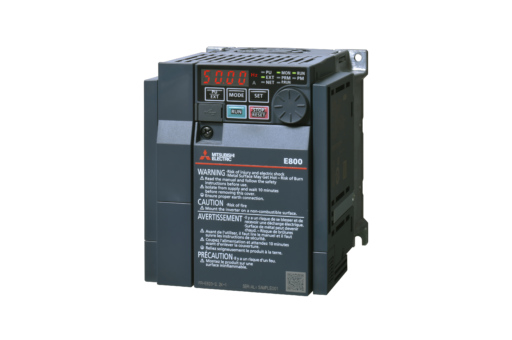

Inverter; Pn:0,75-1,5kW;3x380-480V;In max:3,5A;( 0,75kW;2,6A );RS-485;IP20, The Mitsubishi FR-E840-0026-4-60 is a compact and energy-efficient 0.75kW variable frequency drive ( VFD ) from the advanced FR-E800 series, designed for small industrial machines and OEM applications. With 3-phase 380–480V input, it delivers reliable motor control, smooth operation, and optimized energy usage in a space-saving design, making it ideal for compact control panels and machine installations. Equipped with sensorless vector control and built-in RS-485 ( Modbus ) communication, the FR-E840-0026-4-60 enables seamless integration into modern automation systems. It is widely used in packaging machines, conveyors, fans, and light industrial equipment, offering efficient performance, reduced energy consumption, and easy installation for compact industrial environments.
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 3,5 |
| Rated Output Current ND (A) | 2,6 |
| Rated Motor Capacity LD (kW) | 1,5 |
| Rated Motor Capacity ND (kW) | 0,75 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 55 |
| Power Loss ND (W) | 38 |
| Protection Class | IP20 |
| Depth (mm) | 129,5 |
|---|---|
| Weight (kg) | 1,2 |
| Width (mm) | 108 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 215 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 5 |
| Wood (g) | 0 |
| Other paper (g) | 17 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
