Material number 247599

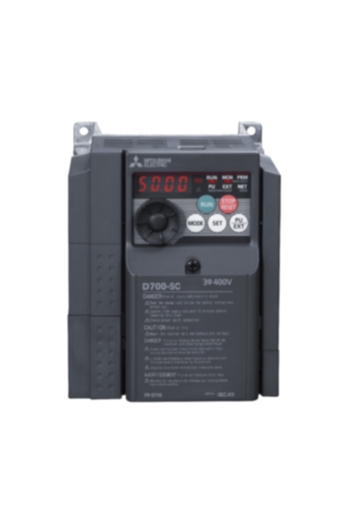

Inverter; Rated Power: 1,5kW; 1x200-240V; Rated Current:7A@50°C; IP20, The Mitsubishi FR-D720S-070SC-EC is a compact and user-friendly 1.5kW variable frequency drive ( VFD ) from the reliable FR-D700 series, designed for small industrial machines and OEM applications. Featuring a single-phase 200–240V input, it offers easy installation and cost-effective motor control, making it an ideal solution for setups where three-phase power is not available. Engineered for simplicity and efficiency, the FR-D720S-070SC-EC includes stable V/F control, a built-in brake function, and intuitive operation for quick setup. It is widely used in packaging machines, conveyors, fans, and light automation systems, delivering reliable performance, reduced energy consumption, and compact panel integration for small-scale industrial environments.
| Series | FR-D700 SERIES |
|---|---|
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 7 |
| Rated Motor Capacity ND (kW) | 1,5 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 80 |
| Standby Power Consumption (W) | 5,5-14 |
| Protection Class | IP20 |
| Depth (mm) | 150 |
|---|---|
| Weight (kg) | 1,5 |
| Width (mm) | 108 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 352,6 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
