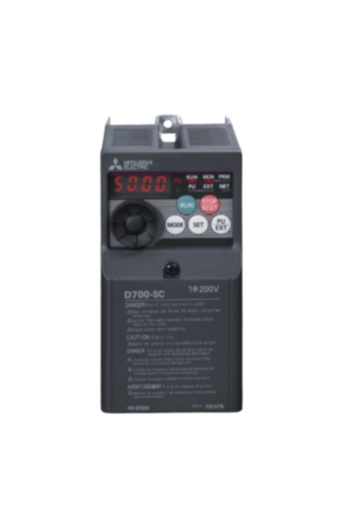

Material number 219061
Inverter, Rated Power: 0,4kW; 1x100-115V; Rated Current: 2,5A; IP20
| Series | FR-D700 SERIES |
|---|---|
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 100 |
| Min. Permissible Voltage (V) | 90 |
| Maximum Rated Voltage (V) | 115 |
| Max. Permissible Voltage (V) | 132 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 2,5 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 32 |
| Standby Power Consumption (W) | 5,5-10,5 |
| Protection Class | IP20 |
| Depth (mm) | 142,5 |
|---|---|
| Weight (kg) | 0,9 |
| Width (mm) | 68 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 10 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 127-19-5, 556-67-2, 541-02-6, 15571-58-1, 13560-89-9, 12060-00-3 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
