Material number 325724

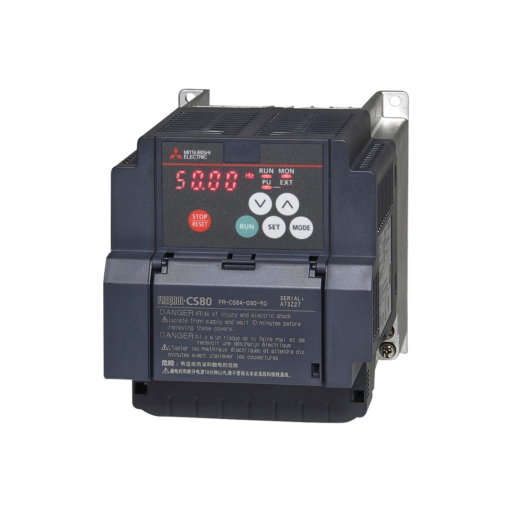

Inverter; Rated Power: 3,7kW; 3x380-480V; Rated Current: 8A; IP20, The Mitsubishi FR-CS84-080-60 is a compact and high-performance 3.7kW variable frequency drive ( VFD ) from the advanced FR-CS80 series, designed for medium-scale industrial automation systems. With 3-phase 380–480V input, it delivers precise motor control, high torque performance, and energy-efficient operation, making it ideal for applications where reliability and space optimization are essential. Equipped with advanced vector control and built-in Modbus ( RS-485 ) communication, the FR-CS84-080-60 enables seamless integration into PLC-based control systems. It is widely used in pumps, HVAC systems, conveyors, and manufacturing equipment, providing stable performance, reduced energy consumption, and easy installation in compact control panels.
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 8 |
| Rated Motor Capacity ND (kW) | 3,7 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 120 |
| Protection Class | IP20 |
| Depth (mm) | 160 |
|---|---|
| Weight (kg) | 1,4 |
| Width (mm) | 108 |
| Height (mm) | 96 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 388,6 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
