Material number 325723

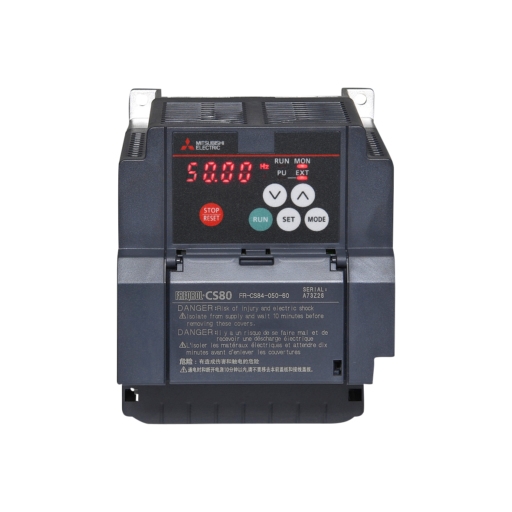

Inverter; Rated Power: 2,2kW; 3x380-480V; Rated Current: 5A; IP20, The Mitsubishi FR-CS84-050-60 is a compact and high-performance 2.2kW variable frequency drive ( VFD ) from the advanced FR-CS80 series, designed for versatile industrial automation applications. With 3-phase 380–480V input, it delivers precise motor control, stable performance, and energy-efficient operation, making it ideal for systems where reliability, flexibility, and space optimization are essential. Equipped with advanced vector control and built-in RS-485 ( Modbus ) communication, the FR-CS84-050-60 ensures seamless integration into PLC-based control systems. It is widely used in pumps, HVAC systems, conveyors, packaging machines, and manufacturing equipment, providing optimized motor performance, reduced energy consumption, and easy installation in compact control panels.
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 5 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 75 |
| Protection Class | IP20 |
| Depth (mm) | 130 |
|---|---|
| Weight (kg) | 0,9 |
| Width (mm) | 108 |
| Height (mm) | 96 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 352,3 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
