Material number 325721

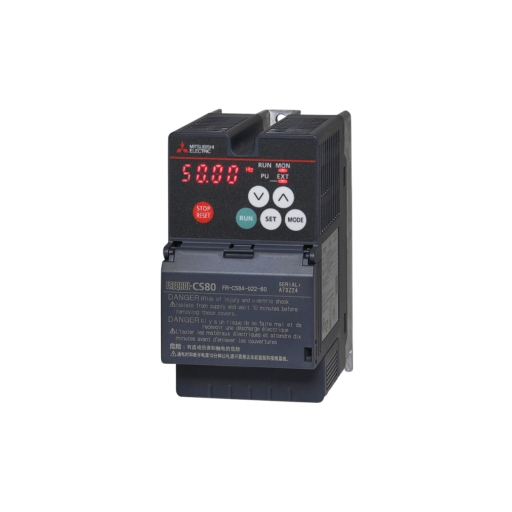

Inverter; Rated Power: 0,75kW; 3x380-480V; Rated Current: 2,2A; IP20, The Mitsubishi FR-CS84-022-60 is an ultra-compact 0.75kW variable frequency drive ( VFD ) from the advanced FR-CS80 series, designed for small industrial machines and OEM applications. With 3-phase 380–480V input, it delivers reliable motor control, energy efficiency, and stable performance in a space-saving design, making it ideal for control panels with limited space. Equipped with advanced vector control and built-in Modbus ( RS-485 ) communication, the FR-CS84-022-60 enables seamless integration into modern automation systems. It is widely used in packaging machines, conveyors, fans, and small automation setups, offering efficient motor operation, reduced energy consumption, and easy installation for compact industrial environments.
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 2,2 |
| Rated Motor Capacity ND (kW) | 0,75 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 25 |
| Protection Class | IP20 |
| Depth (mm) | 118 |
|---|---|
| Weight (kg) | 0,6 |
| Width (mm) | 68 |
| Height (mm) | 56 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 190,2 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
