Material number 325718

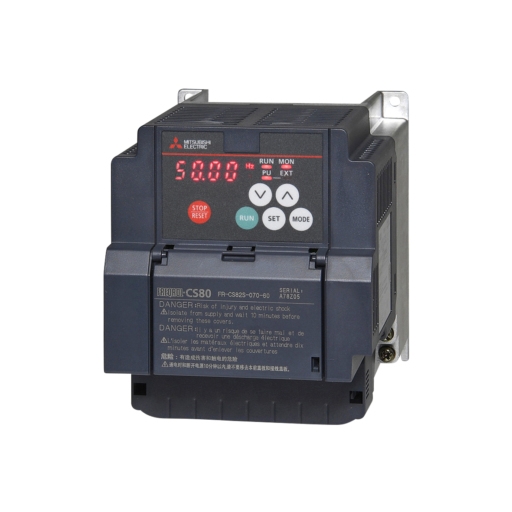

Inverter; Rated Power: 1,5kW; 1x200-240V; Rated Current:7A; IP20, The Mitsubishi FR-CS82S-070-60 is a compact and intelligent 1.5kW variable frequency drive ( VFD ) from the advanced FR-CS80 series, designed for small industrial machines and OEM automation systems. With single-phase 200–240V input, it offers easy installation and efficient motor control, making it an ideal solution for applications where three-phase power is not available. Equipped with advanced vector control and built-in RS-485 ( Modbus ) communication, the FR-CS82S-070-60 enables seamless integration into PLC-based systems. It is widely used in packaging machines, conveyors, fans, and light automation equipment, delivering reliable performance, energy efficiency, and space-saving installation for modern compact control panels.
| Series | FR-CS80 SERIES |
|---|---|
| Type | FR-CS82 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 7 |
| Rated Motor Capacity ND (kW) | 1,5 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 0 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 70 |
| Protection Class | IP20 |
| Depth (mm) | 160 |
|---|---|
| Weight (kg) | 1,4 |
| Width (mm) | 108 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 388,6 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
