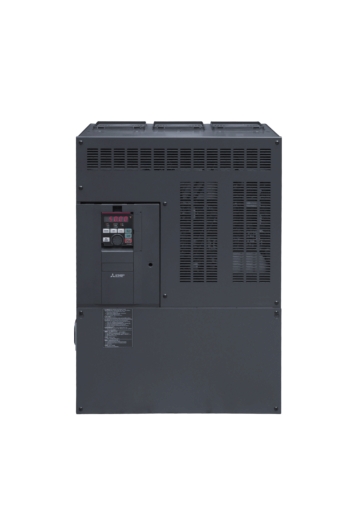

Material number 307188
Inverter Body AC; Pn: 90-160kW; 3x380-500V;In max: 325A;(110kW; 216A); IP00
| Series | FR-A/F800 SERIES |
|---|---|
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 325 |
| Rated Output Current LD (A) | 260 |
| Rated Output Current ND (A) | 216 |
| Rated Output Current HD (A) | 180 |
| Rated Motor Capacity SLD (kW) | 160 |
| Rated Motor Capacity LD (kW) | 132 |
| Rated Motor Capacity ND (kW) | 110 |
| Rated Motor Capacity HD (kW) | 90 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 3600 |
| Power Loss LD (W) | 2800 |
| Power Loss ND (W) | 2300 |
| Power Loss HD (W) | 1850 |
| Standby Power Consumption (W) | 75 |
| Protection Class | IP00 |
| Depth (mm) | 360 |
|---|---|
| Weight (kg) | 71 |
| Width (mm) | 465 |
| Height (mm) | 740 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 7666 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 215 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
