Material number 307186

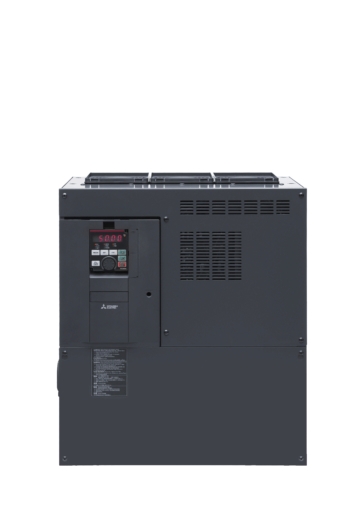

Inverter Body AC; Pn: 55-110kW; 3x380-500V;In max: 216A;(75kW; 144A); IP00, The Mitsubishi FR-AF840-02160-60 is a powerful and energy-efficient variable frequency drive ( VFD ) from the advanced FR-A/F800 series. Designed for heavy-duty industrial environments, this inverter delivers precise motor control, improved energy savings, and reliable performance for demanding applications. With support for high-capacity operations up to 110kW, this VFD is ideal for industries requiring robust automation, including manufacturing, water treatment, HVAC systems, and large-scale machinery.
Material Type: Standard Material
Logistic Class: A
| Series | FR-A/F800 SERIES |
|---|---|
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 216 |
| Rated Output Current LD (A) | 180 |
| Rated Output Current ND (A) | 144 |
| Rated Output Current HD (A) | 110 |
| Rated Motor Capacity SLD (kW) | 110 |
| Rated Motor Capacity LD (kW) | 90 |
| Rated Motor Capacity ND (kW) | 75 |
| Rated Motor Capacity HD (kW) | 55 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 2520 |
| Power Loss LD (W) | 2100 |
| Power Loss ND (W) | 1790 |
| Power Loss HD (W) | 1350 |
| Standby Power Consumption (W) | 46 |
| Protection Class | IP00 |
| Depth (mm) | 300 |
|---|---|
| Weight (kg) | 52 |
| Width (mm) | 465 |
| Height (mm) | 620 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 5718,2 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 215 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
