Material number 307164

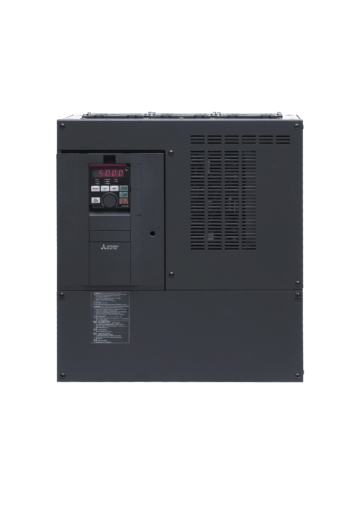

Inverter Body AC; Pn: 37-55kW; 3x380-500V;In max: 116A;(45kW; 86A); IP00, The Mitsubishi FR-AF840-01160-60 is a powerful and energy-efficient variable frequency drive (VFD) from the advanced FR-A/F800 series. Designed for medium to heavy-duty industrial applications, this inverter delivers precise motor control, high efficiency, and reliable performance across a wide range of automation systems. With flexible power capacity ranging from 37kW (HD) up to 55kW (LD), this VFD is ideal for industries that require stable motor speed control in applications such as conveyors, HVAC systems, pumps, and manufacturing equipment. Its advanced control technology ensures optimal performance even under demanding operating conditions.
Material Type: Standard Material
Logistic Class: A
| Series | FR-A/F800 SERIES |
|---|---|
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 116 |
| Rated Output Current LD (A) | 106 |
| Rated Output Current ND (A) | 86 |
| Rated Output Current HD (A) | 71 |
| Rated Motor Capacity SLD (kW) | 55 |
| Rated Motor Capacity LD (kW) | 55 |
| Rated Motor Capacity ND (kW) | 45 |
| Rated Motor Capacity HD (kW) | 37 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 1340 |
| Power Loss LD (W) | 1220 |
| Power Loss ND (W) | 1020 |
| Power Loss HD (W) | 860 |
| Standby Power Consumption (W) | 28 |
| Protection Class | IP00 |
| Depth (mm) | 250 |
|---|---|
| Weight (kg) | 41 |
| Width (mm) | 435 |
| Height (mm) | 550 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 4908,8 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 155 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
