Material number 307163

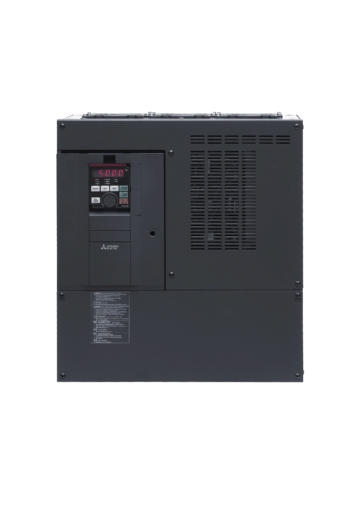

Inverter Body AC; Pn: 30-45kW; 3x380-500V;In max: 93A;(37kW; 71A); IP00, The Mitsubishi FR-AF840-00930-60 is a reliable and energy-efficient variable frequency drive (VFD) from the advanced FR-A/F800 series. Designed for medium to heavy industrial applications, this inverter delivers precise motor control, improved energy savings, and long-term operational stability. With a power capacity of approximately 37kW (Normal Duty), this VFD is ideal for industries that require efficient motor speed control in applications such as pumps, conveyors, HVAC systems, and automated machinery.
Material Type: Standard Material
Logistic Class: A
| Series | FR-A/F800 SERIES |
|---|---|
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 93 |
| Rated Output Current LD (A) | 85 |
| Rated Output Current ND (A) | 71 |
| Rated Output Current HD (A) | 57 |
| Rated Motor Capacity SLD (kW) | 45 |
| Rated Motor Capacity LD (kW) | 45 |
| Rated Motor Capacity ND (kW) | 37 |
| Rated Motor Capacity HD (kW) | 30 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 1110 |
| Power Loss LD (W) | 1020 |
| Power Loss ND (W) | 840 |
| Power Loss HD (W) | 700 |
| Standby Power Consumption (W) | 28 |
| Protection Class | IP00 |
| Depth (mm) | 250 |
|---|---|
| Weight (kg) | 41 |
| Width (mm) | 435 |
| Height (mm) | 550 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 4908,8 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 155 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
