Material number 307162

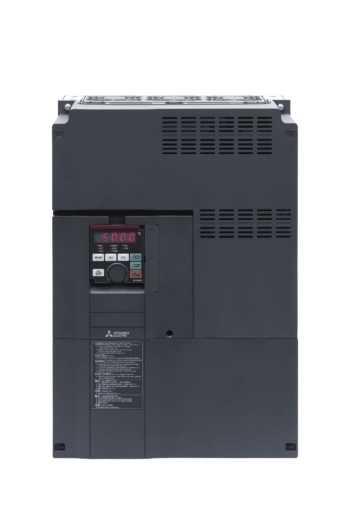

Inverter Body AC; Pn: 22-37kW; 3x380-500V;In max: 77A;(30kW; 57A); IP00, The Mitsubishi FR-AF840-00770-60 is a high-performance 30kW–37kW variable frequency drive ( VFD ) from the advanced FR-A800 series, engineered for heavy-duty industrial automation systems. Designed for 3-phase 380–500V input, it delivers precise motor control, high torque output, and exceptional reliability, making it ideal for demanding applications where performance, durability, and efficiency are critical. Equipped with advanced vector control technology and multi-protocol communication support ( including Modbus and industrial networks ), the FR-AF840-00770-60 ensures seamless integration into complex automation environments. It is widely used in cranes, elevators, heavy conveyors, compressors, pumps, and large-scale manufacturing systems, offering superior load handling, reduced energy consumption, and stable operation in high-demand industrial applications.
| Series | FR-A/F800 SERIES |
|---|---|
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 77 |
| Rated Output Current LD (A) | 70 |
| Rated Output Current ND (A) | 57 |
| Rated Output Current HD (A) | 44 |
| Rated Motor Capacity SLD (kW) | 37 |
| Rated Motor Capacity LD (kW) | 37 |
| Rated Motor Capacity ND (kW) | 30 |
| Rated Motor Capacity HD (kW) | 22 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 930 |
| Power Loss LD (W) | 825 |
| Power Loss ND (W) | 690 |
| Power Loss HD (W) | 560 |
| Standby Power Consumption (W) | 26 |
| Protection Class | IP00 |
| Depth (mm) | 195 |
|---|---|
| Weight (kg) | 23 |
| Width (mm) | 325 |
| Height (mm) | 550 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 2893,5 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 13 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
