Material number 312346

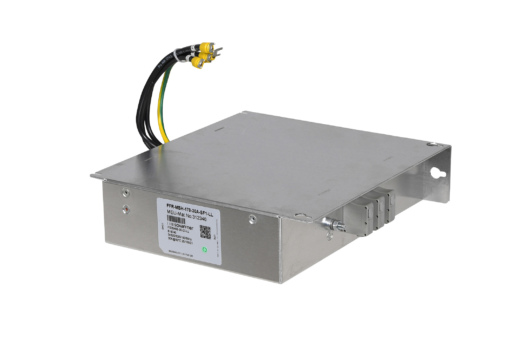

Radio Noise Filter for FR-E740/E840-120/170; C1 10m, C2 30m
| Type | RADIO NOISE FILTER |
|---|---|
| Series | FR-E800 SERIES, FR-D700 SERIES |
| Applicable Inverter | FR-D740-120/160SC, FR-E840-0120/0170 |
| Rated Current (A) (fa_ger_79) | 30 |
| Power Loss (W) | 42 |
| Leakage Current (mA) | <3,5 |
| Protection Class | IP20 |
| Depth (mm) | 55 |
|---|---|
| Weight (kg) | 1,8 |
| Width (mm) | 225 |
| Height (mm) | 210 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 540,32 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 84 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
