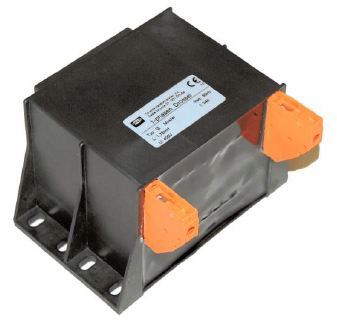

Material number 238346
DC Link choke for 400V Inverter; 3,7kW; 8,81mH; 7,1A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Inductance (mH) | 8,81 |
| Rated Capacity (kW) | 3,7 |
| Rated Current (A) (fa_ger_79) | 7,1 |
| Power Loss (W) | 19,4 |
| Protection Class | IP20 |
| Depth (mm) | 81 |
|---|---|
| Weight (kg) | 1,2 |
| Width (mm) | 112,5 |
| Height (mm) | 71,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
