Material number 312349

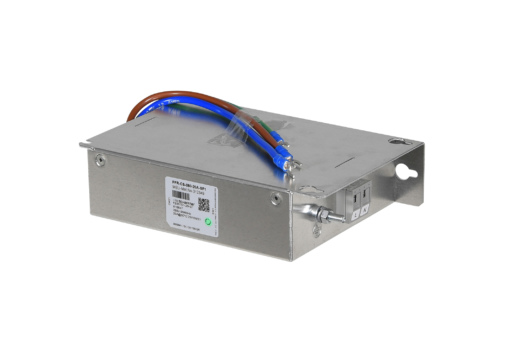

Radio Noise Filter for FR-E820S-0050-0080/FR-D720S/FR-CS82S; C1: 20m, C2: 50m
| Type | RADIO NOISE FILTER |
|---|---|
| Series | FR-E800 SERIES, FR-D700 SERIES, FR-CS80 SERIES |
| Applicable Inverter | FR-CS82S-070, FR-D720S-070SC, FR-E820S-0050–0080 |
| Rated Current (A) (fa_ger_79) | 20 |
| Power Loss (W) | 13 |
| Leakage Current (mA) | <20 |
| Protection Class | IP20 |
| Depth (mm) | 42 |
|---|---|
| Weight (kg) | 0,65 |
| Width (mm) | 113 |
| Height (mm) | 168 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 144,06 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 25,62 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
