Material number 312348

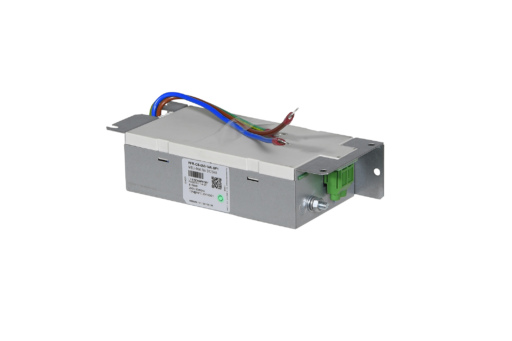

Radio Noise Filter for FR-E820S-0008-0030/FR-D720S/FR-CS82S; C1: 20m, C2: 50m
| Type | RADIO NOISE FILTER |
|---|---|
| Series | FR-E800 SERIES, FR-D700 SERIES, FR-CS80 SERIES |
| Applicable Inverter | FR-E820S-0008–0030, FR-D720S-008–042SC, FR-CS82S-025–042 |
| Rated Current (A) (fa_ger_79) | 12 |
| Power Loss (W) | 9 |
| Leakage Current (mA) | <20 |
| Protection Class | IP20 |
| Depth (mm) | 40 |
|---|---|
| Weight (kg) | 0,39 |
| Width (mm) | 70 |
| Height (mm) | 168 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 247,2 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 35 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
