Material number 193678

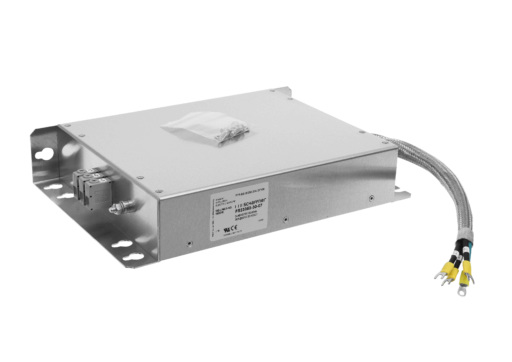

Radio Noise Filter for FR-A&F-00170/00250-EC; C1 20m; C2 100m
| Type | RADIO NOISE FILTER |
|---|---|
| Series | FR-F800 SERIES, FR-A800 SERIES |
| Applicable Inverter | FR-A840-00170/00250, FR-F840-00170/00250 |
| Rated Current (A) (fa_ger_79) | 30 |
| Power Loss (W) | 15,8 |
| Leakage Current (mA) | <30 |
| Protection Class | IP20 |
| Depth (mm) | 60 |
|---|---|
| Weight (kg) | 1,8 |
| Width (mm) | 220 |
| Height (mm) | 315 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 639,97 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
