    313052-RV-2FR-D-S25

    313052 - RV-2FR-D-S25

    Material number 313052

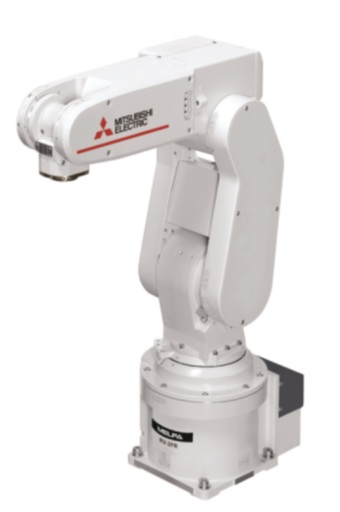

    Industrial Robot RV-2FR-D 6-axis; +/- 0,02mm;2kg;504mm;IP30;incl. CR800;no brake

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 160
    Series RV-FR SERIES
    Cycle Time (s) 0,6
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 2
    Environment specification STANDARD
    Controller Type CR800-D
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP30
    Power Consumption (VA) 500
    Max. Reach Radius (mm) 504
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 4955
    Operating Range J6 (deg) 720
    Power Supply (VAC) 1PHASE 200-230V
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 525
    Weight (kg) 19
    Width (mm) 160
    Height (mm) 623
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 300
    Styrofoam (g) 0
    Cardboard (g) 7926
    Steel (g) 10
    Glass (g) 0
    Other plastic (g) 239
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 110-71-4, 119313-12-1, 80-05-7, 12060-00-3, 127-19-5, 1303-86-2, 13560-89-9, 26523-78-4, 540-97-6, 541-02-6, 556-67-2, 71868-10-5, 7439-92-1, 79-94-7, 80-43-3, 110-80-5
    RoHS Compliance NOT IN SCOPE
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
