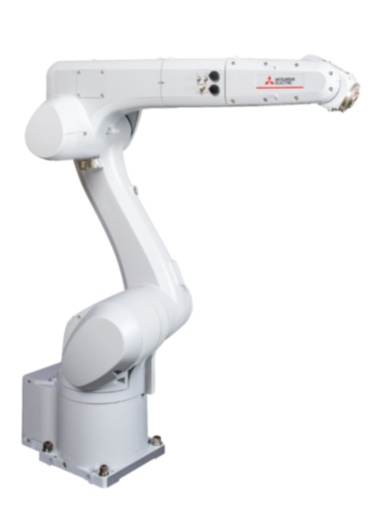

    713769-RV-12CRL-D-S15

    713769 - RV-12CRL-D-S15

    Material number 713769

    Industrial Robot RV-12CRL-D 6-axis; +/- 0,04mm; 12kg; 1504 mm; IP65; incl. CR800

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 170
    Series RV-CR SERIES
    Cycle Time (s) 0,38
    Repeatability (mm) 0,04
    Operating Range J1 (deg) 340
    Type VERTICAL
    Payload (kg) 12
    Environment specification STANDARD
    Controller Type CR800-12CVD
    Installation Method FLOOR, CEILING
    Protection Class IP65
    Power Consumption (VA) 3000
    Max. Reach Radius (mm) 1504
    Operating Range J4 (deg) 380
    Operating Range J2 (deg) 240
    Speed (mm/s) 10500
    Operating Range J6 (deg) 720
    Power Supply (VAC) 1PHASE 230V, 3PHASE 200-230V
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 1380
    Weight (kg) 110
    Width (mm) 480
    Height (mm) 1274
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 272
    Styrofoam (g) 0
    Cardboard (g) 10.318
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 698
    Wood (g) 22.100
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 119-47-1, 119313-12-1, 12060-00-3, 127-19-5, 1303-86-2, 13560-89-9, 540-97-6, 541-02-6, 556-67-2, 71868-10-5, 7439-92-1, 79-94-7, 80-05-7, 80-43-3, 85-42-7, 96-45-7, 119344-86-4, 3147-75-9
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
