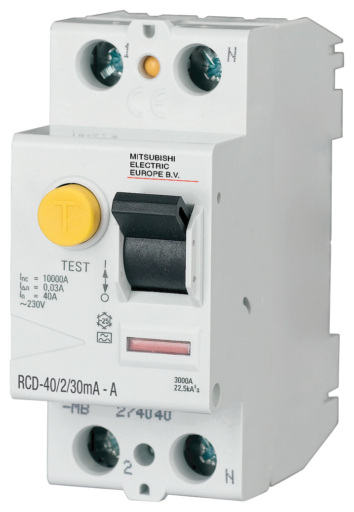

Material number 719907
2-pole; 1N RCCB; 40A; 30mA; Type A
| Series | MODULAR DIN RAIL COMPONENTS |
|---|---|
| Type | RCCB |
| Rated Current (A) | 40 |
| Rated Voltage (V) | 230 |
| Current Type | AC |
| Number of Poles | 2 |
| Cycles with Rated Current | 4000 |
| Cycles without Rated Current | 20000 |
| Rated Current Sensibility (mA) | 30 |
| Pulsating Current Sensibility | AC AND PULSATING DC |
| Compliant with Standard(s) | IEC/EN 61008 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 13 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 8 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
