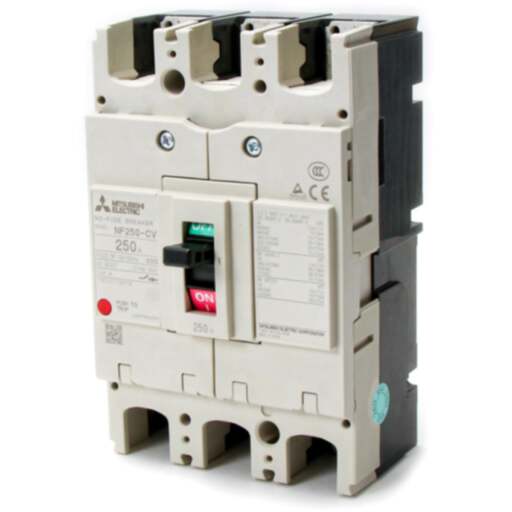

Material number 255061
Circuit breaker 3pole. In = 200A; Icu / Ics = 15 / 12kA at AC 440V
| Series | WS-V SERIES - MCCB |
|---|---|
| Type | NF-C TYPE (ECONOMY CLASS) |
| Frame Size | 250 |
| Rated Current (A) | 200 |
| Current Type | AC/DC |
| Number of Poles | 3 |
| Rated Voltage (V) | 600 |
| Breaking Capacity at 400V (kA) | 25/19 |
| Compliant with Standard(s) | IEC 60947-2, EN 60947-2 |
| Cycles with Rated Current | 4000 |
| Cycles without Rated Current | 8000 |
| Automatic Tripping Device | THERMAL-MAGNETIC |
| Depth (mm) | 92 |
|---|---|
| Weight (kg) | 1,5 |
| Width (mm) | 105 |
| Height (mm) | 165 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | LR, DNV·GL, BV, ABS, CCS |
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 97 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119344-86-4 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
