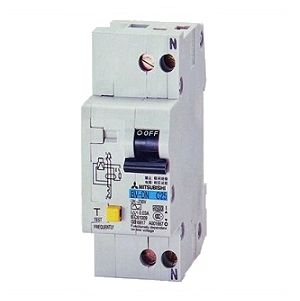

Material number 248289
Residual current circuit breaker 230VAC; 4.5kA; 25A; 1+N pole; Type C
| Series | WS-V SERIES - RCBO |
|---|---|
| Type | BV-DN EARTH CIRCUIT BREAKER |
| Rated Current (A) | 25 |
| Rated Voltage (V) | 230 |
| Current Type | AC |
| Number of Poles | 1+N |
| Instantaneous Tripping | TYPE C |
| Breaking Capacity at 415V (kA) | 4,5 |
| Cycles with Rated Current | 20000 |
| Cycles without Rated Current | 20000 |
| Rated Current Sensibility (mA) | 30 |
| Pulsating Current Sensibility | TYPE AC |
| Compliant with Standard(s) | IEC 61009-2-2 |
| Depth (mm) | 70 |
|---|---|
| Weight (kg) | 0,19 |
| Width (mm) | 36 |
| Height (mm) | 88 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0,03 |
| Cardboard (g) | 21,95 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0,03 |
| Wood (g) | 4,44 |
| Other paper (g) | 0,05 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
