Material number 273312

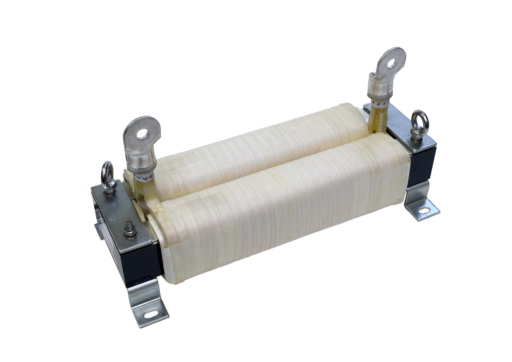

DC Link choke for 400V Inverter with 280kW Motor
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A800, FR-F800 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Phases | 3 |
| Rated Capacity (kW) | 280 |
| Power Loss (W) | 300 |
| Protection Class | IP00 |
| Depth (mm) | 255 |
|---|---|
| Weight (kg) | 38 |
| Width (mm) | 190 |
| Height (mm) | 440 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 3100 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 80 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 540-97-6, 541-02-6, 556-67-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
