FR-XCB-55K-60

FR-XCB-55K-60

Material number 410441

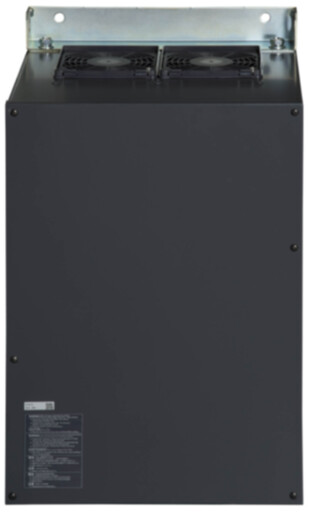

Mitsubishi Electric's FR-XCB-55K-60 is a 200 V class box-type reactor in the coated -60 version, rated 55 kW, for FR-XC converters with harmonic suppression. It lets one regeneration converter act as both a harmonic suppression unit and a braking energy return path, useful in food and beverage plants. Its matching converter, per DahebTech, is the FR-XC-55K-60PWM. Mitsubishi Electric gives K5 = 0 and THDi within 5 % in this mode, with the caveat that a distorted supply raises THDi. The box houses reactor 1 and reactor 2 together with a cooling fan, and the fan condition is monitored through the converter's LOH terminal. Being a -60 part, it matches coated -60PWM converters. Only -PWM converters offer harmonic suppression, and they leave the factory in this mode.

FA-INVERTER: EXTERNAL OPTION
Series REGENERATIVE CONVERTER
Type FR-XC BOX-TYPE REACTOR
Protection Class IP20
PRODUCT DIMENSIONS & WEIGHT
Depth (mm) 330
Weight (kg) 68,5
Width (mm) 350
Height (mm) 575
CONFORMITY
CE COMPLIANT
EAC NON-COMPLIANT
UL/cUL COMPLIANT
UKCA COMPLIANT
PRODUCT PACKAGING
Aluminum (g) 0
Others (g) 0
Styrofoam (g) 0
Cardboard (g) 7000
Steel (g) 0
Glass (g) 0
Other plastic (g) 30
Wood (g) 0
Other paper (g) 0
ENVIRONMENTAL
RoHS Compliance COMPLIANT
Dangerous Goods Class NO
WEEE B2B
Dangerous Goods Identifier NO

Frequently Asked Questions

It is the coated -60 version of the 55 kW, 200 V class box-type reactor, letting one FR-XC converter suppress harmonics and return braking energy, for example in food and beverage plants.
The FR-XC-55K-60PWM.
Reactor 1, reactor 2 and a cooling fan monitored via the LOH terminal.
