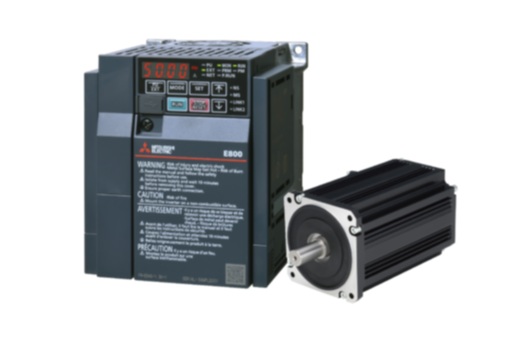

FR-E840-0095-4-60 + EM-AMFK MotorKit

FR-E840-0095-4-60 + EM-AMFK MotorKit

Material number 712037

Combining the FR-E840-0095-4-60 FR-E800 inverter with a 3.7 kW EM-AMFK motor, the FR-E840-0095-4-60 + EM-AMFK MotorKit is a matched Mitsubishi Electric drive package for 3 x 380–480 V, with the inverter rated 9.5 A in normal duty. Good fits include booster pumps and compact conveyors that need encoderless positioning. The inverter runs the motor in PM sensorless vector control, giving encoderless positioning, a 1:1300 speed control range and servo lock holding torque when stopped. The motor is rated 3000 r/min with a 4000 r/min maximum. The motor has a keyed shaft and no holding brake. The inverter is the -4 standard RS-485 version, with STO through S1/S2 to SIL2/PLd. Without the W option the motor enclosure is IP44 as standard.

FA-INVERTER: INVERTER
Series FR-E800 SERIES
Type INVERTER + MOTOR KIT
CONFORMITY
CE COMPLIANT
EAC COMPLIANT
ENVIRONMENTAL
RoHS Compliance COMPLIANT
Dangerous Goods Class NO
WEEE B2B

Frequently Asked Questions

The kit combines a 3.7 kW EM-AMFK EM-A permanent magnet motor with the FR-E840-0095-4-60 FR-E800 inverter, rated 9.5 A on three-phase 380–480 V.
Common uses are booster pumps and compact conveyors.
RS-485 is built into the inverter.
