FR-E840-0060EPB-60 + EM-AMFKT MotorKit

FR-E840-0060EPB-60 + EM-AMFKT MotorKit

Material number 712008

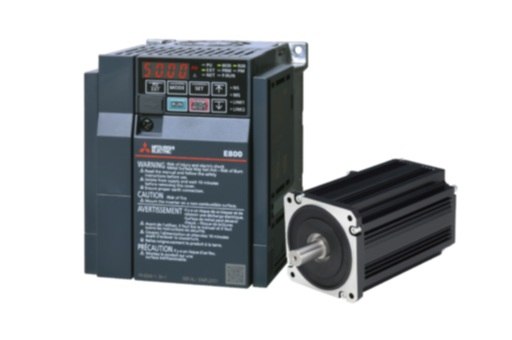

For 2.2 kW duties, the FR-E840-0060EPB-60 + EM-AMFKT MotorKit supplies a Mitsubishi Electric FR-E840-0060EPB-60 inverter (6 A normal duty, 3 x 380–480 V) together with an EM-A series EM-AMFKT permanent magnet motor. Good fits include pallet conveyors and small storage and transfer axes. The inverter runs the motor in PM sensorless vector control, giving encoderless positioning, a 1:1300 speed control range and servo lock holding torque when stopped. The EM-AMFKT motor is the version without brake, with a keyed shaft. The EPB inverter offers Ethernet protocol group B (PROFINET, MODBUS/TCP, CC-Link IE TSN, CC-Link IE Field Network Basic) on two ports, plus STO to SIL2/PLd. A cooling fan is fitted to the inverter. The T denotes a terminal block for the motor connection.

FA-INVERTER: INVERTER
Series FR-E800 SERIES
Type INVERTER + MOTOR KIT
CONFORMITY
CE COMPLIANT
EAC COMPLIANT
ENVIRONMENTAL
RoHS Compliance COMPLIANT
Dangerous Goods Class NO
WEEE B2B

Frequently Asked Questions

The kit combines a 2.2 kW EM-AMFKT EM-A permanent magnet motor with the FR-E840-0060EPB-60 FR-E800 inverter, rated 6 A on three-phase 380–480 V.
It is typically used on pallet conveyors and small storage and transfer axes.
Over Ethernet, the inverter can use protocol group B (CC-Link IE TSN, CC-Link IE Field Network Basic, PROFINET and MODBUS/TCP).
