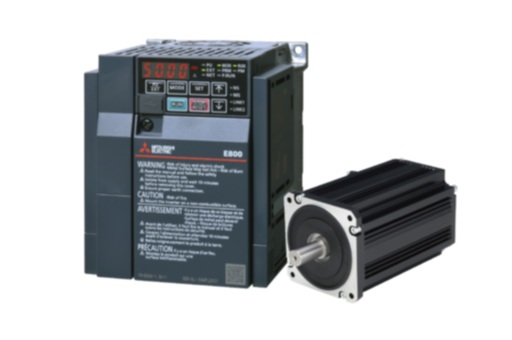

FR-E840-0060EPB-60 + EM-AMFBKT MotorKit
Material number 712015
The 2.2 kW FR-E840-0060EPB-60 + EM-AMFBKT MotorKit is a ready-matched Mitsubishi Electric set: an FR-E840-0060EPB-60 FR-E800 inverter for 3 x 380–480 V, rated 6 A in normal duty, and an EM-A series EM-AMFBKT PM motor. Use it for chilled-water pumps or space-limited OEM machines. Running in PM sensorless vector control, the kit offers positioning without a motor encoder, a speed variation rate of ±0.05 % and servo lock torque at standstill. A 24 V DC spring-actuated holding brake is fitted to the motor, which also has a keyed shaft. Its EPB inverter provides two Ethernet ports for protocol group B, including PROFINET, and STO rated SIL2/PLd. The T denotes a terminal block for the motor connection.
FA-INVERTER: INVERTER
| Series | FR-E800 SERIES |
|---|---|
| Type | INVERTER + MOTOR KIT |
CONFORMITY
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
Related Products
Frequently Asked Questions
It contains the FR-E840-0060EPB-60 FR-E800 inverter (rated 6 A on three-phase 380–480 V) and a 2.2 kW EM-A permanent magnet motor, the EM-AMFBKT.
Typical applications include chilled-water pumps or space-limited OEM machines.
Yes, the motor has a 24 V DC spring-applied holding brake.
