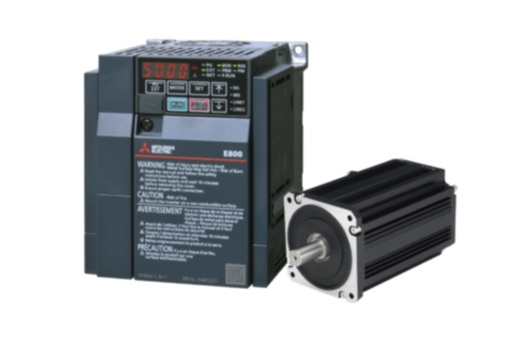

FR-E840-0060-4-60 + EM-AMFKT MotorKit
Material number 712036
The 2.2 kW FR-E840-0060-4-60 + EM-AMFKT MotorKit is a ready-matched Mitsubishi Electric set: an FR-E840-0060-4-60 FR-E800 inverter for 3 x 380–480 V, rated 6 A in normal duty, and an EM-A series EM-AMFKT PM motor. It is aimed at AHU fans and small storage and transfer axes. Running in PM sensorless vector control, the kit offers positioning without a motor encoder, a speed variation rate of ±0.05 % and servo lock torque at standstill. The motor has a keyed shaft and no holding brake. The inverter is the -4 standard RS-485 version, with STO through S1/S2 to SIL2/PLd. A brake transistor is built in for an optional external brake resistor. The T denotes a terminal block for the motor connection.
FA-INVERTER: INVERTER
| Series | FR-E800 SERIES |
|---|---|
| Type | INVERTER + MOTOR KIT |
CONFORMITY
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
Related Products
Frequently Asked Questions
It contains the FR-E840-0060-4-60 FR-E800 inverter (rated 6 A on three-phase 380–480 V) and a 2.2 kW EM-A permanent magnet motor, the EM-AMFKT.
Typical applications include AHU fans and small storage and transfer axes.
The inverter communicates over RS-485.
