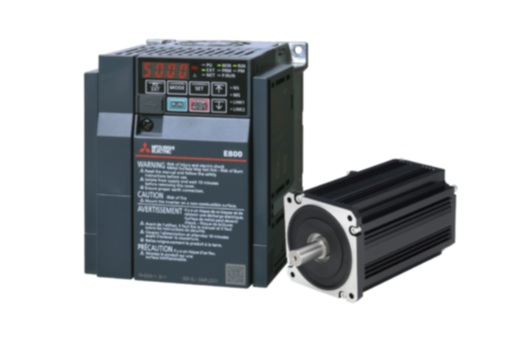

FR-E820S-0050-4-60 + EM-AMFKT MotorKit

FR-E820S-0050-4-60 + EM-AMFKT MotorKit

Material number 711981

The Mitsubishi Electric FR-E820S-0050-4-60 + EM-AMFKT kit joins a 0.75 kW, 5 A single-phase 200–240 V FR-E800 inverter to a 0.75 kW EM-A PM motor. Typical uses include conveyors, wrapping machines and agitators. PM sensorless vector control gives speed control and simple positioning without an encoder. The EM-A motor meets efficiency class IE5 for variable-speed motors. The -4 standard inverter communicates over RS-485 Modbus RTU and has Safe Torque Off to SIL2/PLd. The motor is flange mounted with a keyed shaft and terminal block connection, rated IP44 and totally enclosed self-cooled. Rated torque is 2.39 N·m at 3000 r/min, and the maximum speed is 4000 r/min. For regenerative loads, an optional brake resistor can be wired to the built-in brake transistor.

FA-INVERTER: INVERTER
Series FR-E800 SERIES
Type INVERTER + MOTOR KIT
CONFORMITY
CE COMPLIANT
EAC COMPLIANT
ENVIRONMENTAL
RoHS Compliance COMPLIANT
Dangerous Goods Class NO
WEEE B2B

Frequently Asked Questions

The kit combines a 0.75 kW EM-AMFKT EM-A permanent magnet motor with the FR-E820S-0050-4-60 FR-E800 inverter, rated 5 A on single-phase 200–240 V.
It is typically used on conveyors, wrapping machines and agitators.
The inverter communicates over RS-485 with Modbus RTU.
