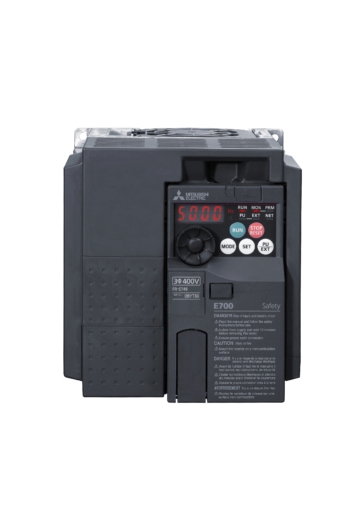

Material number 234801
Inverter; Rated Power: 0,4kW; 3x380-480V; Rated Current: 1,6A@50°C; IP20
| Series | FR-E700 SERIES |
|---|---|
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 1,6 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 45 |
| Standby Power Consumption (W) | 9,2 |
| Protection Class | IP20 |
| Depth (mm) | 120 |
|---|---|
| Weight (kg) | 1,4 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 422 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
