    134968-FR-BAL-S-B-0,2K

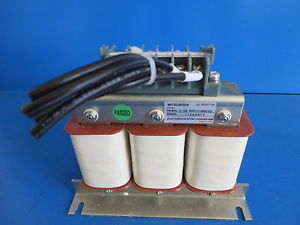

    134968 - FR-BAL-S-B-0,2K

    Material number 134968

    Input Reactor; 1 ph.; 230 V; for 0,2 K

    Request for Quote Add to List
    FA-INVERTER: CHOKE
    Type AC MAIN SUPPLY CHOKE
    Applicable Inverter FR-F800, FR-E800, FR-A741, FR-A800, FR-D700-SC
    Rated Voltage (V) 230
    Current Type AC
    Phases 1
    Inductance (mH) 10
    Rated Capacity (kW) 0,2
    Rated Current (A) (fa_ger_79) 3
    Power Loss (W) 14
    Protection Class IP00
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 70
    Weight (kg) 0,7
    Width (mm) 66
    Height (mm) 86
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 0
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
