Material number 296230

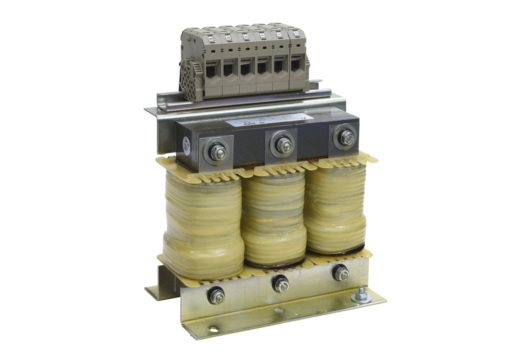

Input reactor 3ph, 400V, In= 325A, Pn=160kW, L1=0,068mH
| Type | AC MAIN SUPPLY CHOKE |
|---|---|
| Applicable Inverter | FR-F800, FR-E800, FR-D700-SC, FR-A800, FR-A741 |
| Rated Voltage (V) | 400 |
| Current Type | AC |
| Phases | 3 |
| Inductance (mH) | 0,068 |
| Rated Capacity (kW) | 160 |
| Rated Current (A) (fa_ger_79) | 325 |
| Power Loss (W) | 285 |
| Protection Class | IP20 |
| Depth (mm) | 205 |
|---|---|
| Weight (kg) | 32 |
| Width (mm) | 240 |
| Height (mm) | 325 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
