    87245-FR-BAL-B-5,5K

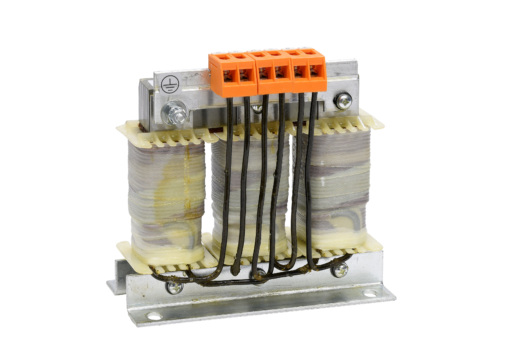

    87245 - FR-BAL-B-5,5K

    Material number 87245

    Input Reactor 3ph; 400V; for 5,5kW

    Request for Quote Add to List
    FA-INVERTER: CHOKE
    Type AC MAIN SUPPLY CHOKE
    Applicable Inverter FR-F800, FR-A741, FR-A800, FR-D700-SC, FR-E800
    Rated Voltage (V) 400
    Current Type AC
    Phases 3
    Inductance (mH) 1,75
    Rated Capacity (kW) 5,5
    Rated Current (A) (fa_ger_79) 16
    Power Loss (W) 44
    Protection Class IP00
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 85
    Weight (kg) 3,7
    Width (mm) 155
    Height (mm) 145
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 0
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
