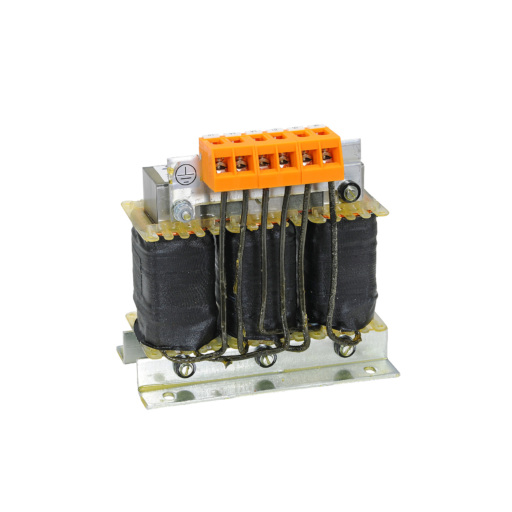

    134973-FR-BAL-B-0,75K

    134973 - FR-BAL-B-0,75K

    Material number 134973

    Input Reactor 3ph; 400V; for 0,75kW

    Request for Quote Add to List
    FA-INVERTER: CHOKE
    Type AC MAIN SUPPLY CHOKE
    Applicable Inverter FR-F800, FR-A741, FR-A800, FR-D700-SC, FR-E800
    Rated Voltage (V) 400
    Current Type AC
    Phases 3
    Inductance (mH) 24
    Rated Capacity (kW) 0,75
    Rated Current (A) (fa_ger_79) 3,5
    Power Loss (W) 38
    Protection Class IP00
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 120
    Weight (kg) 3
    Width (mm) 96
    Height (mm) 115
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA NON-COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
