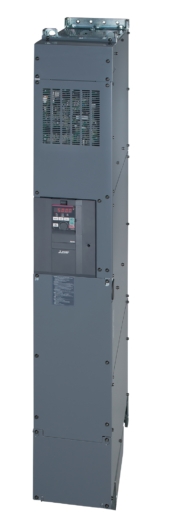

Material number 573405
Inverter AC;Pn:500-560kW;3x525-690V;In max:647A;IP00;Parallel operation function
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 525/600 |
| Min. Permissible Voltage (V) | 472/540 |
| Maximum Rated Voltage (V) | 600/690 |
| Max. Permissible Voltage (V) | 660/759 |
| Current Type | DC |
| Phases | 3 |
| Rated Output Current ND (A) | 569 |
| Rated Motor Capacity ND (kW) | 500 |
| Frequency Range (Hz) | 50/60 |
| Control Method | SOFT-PWM/HIGH FRQ PWM/VECTOR |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1+1 MINI |
| Built-In Network | MODBUS-RTU |
| Power Loss SLD (W) | 5760 |
| Power Loss ND (W) | 5060 |
| Protection Class | IP00 |
| Depth (mm) | 565 |
|---|---|
| Weight (kg) | 186 |
| Width (mm) | 240 |
| Height (mm) | 1600 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 0 |
| Steel (g) | 100 |
| Glass (g) | 0 |
| Other plastic (g) | 500 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 119313-12-1, 12626-81-2, 3147-75-9, 540-97-6, 541-02-6, 7439-92-1, 79-94-7, 80-05-7, 84-61-7, 85-42-7, 556-67-2, 15571-58-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
