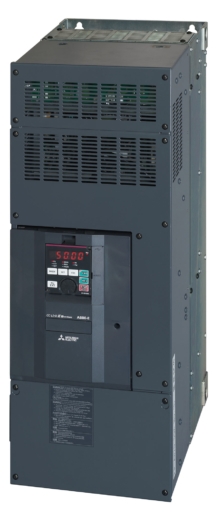

Material number 406262
Inverter AC; Pn: 37-45kW; 3x525-690V;In max: 55A; IP20
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 525/600 |
| Min. Permissible Voltage (V) | 472/540 |
| Maximum Rated Voltage (V) | 600/690 |
| Max. Permissible Voltage (V) | 660/759 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 46 |
| Rated Motor Capacity ND (kW) | 37 |
| Frequency Range (Hz) | 50/60 |
| Control Method | SOFT-PWM/HIGH FRQ PWM/VECTOR |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS |
| Power Loss SLD (W) | 900 |
| Power Loss ND (W) | 600 |
| Protection Class | IP20 |
| Depth (mm) | 410 |
|---|---|
| Weight (kg) | 54 |
| Width (mm) | 251 |
| Height (mm) | 753 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 10500 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 143 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
