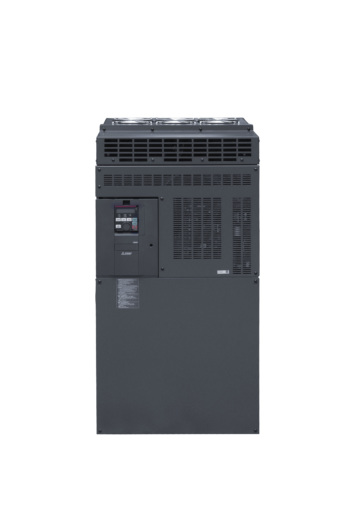

Material number 500480
Umrichter AC; 3x525-600V; IP00; ETH.
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 525 |
| Min. Permissible Voltage (V) | 472 |
| Maximum Rated Voltage (V) | 600 |
| Max. Permissible Voltage (V) | 660 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS |
| Protection Class | IP00 |
| Weight (kg) | 175,5 |
|---|
| CE | NON-COMPLIANT |
|---|---|
| Shipping Approvals | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 21000 |
| Steel (g) | 15 |
| Glass (g) | 0 |
| Other plastic (g) | 50 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | NOT IN SCOPE |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
