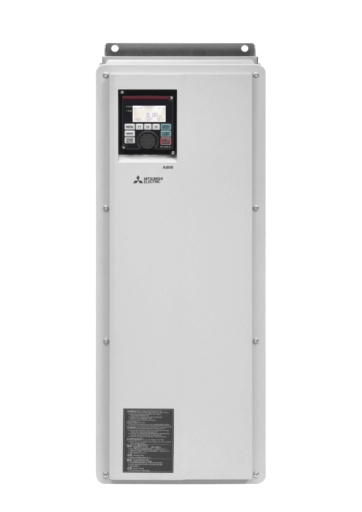

Material number 280799
Inverter AC; Pn:11-15kW; 3x380-500V;In max: 29A;(11kW; 23A); IP55
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 23 |
| Rated Motor Capacity ND (kW) | 11 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1+1 MINI |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 2 |
| Power Loss SLD (W) | 370 |
| Standby Power Consumption (W) | 20 |
| Protection Class | IP55 |
| Depth (mm) | 285 |
|---|---|
| Weight (kg) | 26 |
| Width (mm) | 238 |
| Height (mm) | 650 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 2536 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 95 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
