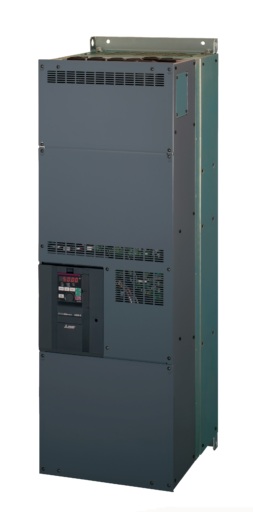

587968 - FR-A840M-04540-E2-60

FA-INVERTER: INVERTER

Series	FR-A SERIES
Type	FR-A800 SLIM MODEL
Minimum Rated Voltage (V)	380
Min. Permissible Voltage (V)	323
Maximum Rated Voltage (V)	500
Max. Permissible Voltage (V)	550
Current Type	AC
Phases	3
Rated Output Current SLD (A)	454
Rated Output Current ND (A)	363
Rated Motor Capacity SLD (kW)	250
Rated Motor Capacity ND (kW)	200
Frequency Range (Hz)	0,2–590
Control Method	V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, VECTOR CONTROL (WITH FR-A8AP), MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL
Motor Type	INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter	YES
Safe Torque Off (STO)	YES
Regenerative (4Q)	YES
Integrated DC Choke	YES
Display	FR-DU08
Display Type	5 DIGITS LED (12 SEGMENT)
PLC Function	YES
Program Memory	6K
Program Memory Unit	STEPS
Integrated Digital Inputs	12
Digital Outputs (Transistor)	5
Digital Outputs (Relay)	2
Integrated Analogue Inputs	3
Integrated Analogue Outputs	2
IO Type of Terminal Block	SPRING CLAMP
Expandable	YES
USB	1+1 MINI
Ethernet Port	1
Built-In Network	CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS
Leakage Current (mA)	35(DELTA) / 2(STAR)
Power Loss SLD (W)	5300
Power Loss ND (W)	4175
Standby Power Consumption (W)	96
Protection Class	IP20

PRODUCT DIMENSIONS & WEIGHT

Depth (mm)	390
Weight (kg)	148
Width (mm)	450
Height (mm)	1250

CONFORMITY

CE	COMPLIANT
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT
