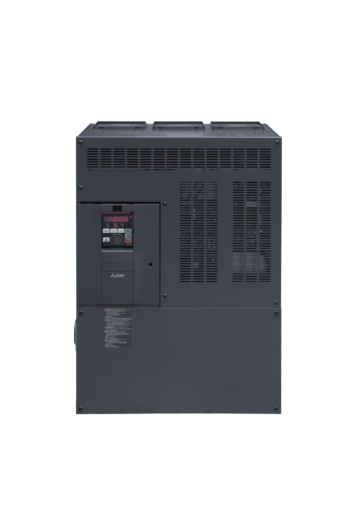

Material number 297626
Inverter AC; Pn: 37-55kW; 3x200-240V;In max: 233A;(45kW; 175A); IP00
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 233 |
| Rated Output Current LD (A) | 212 |
| Rated Output Current ND (A) | 175 |
| Rated Output Current HD (A) | 145 |
| Rated Motor Capacity SLD (kW) | 55 |
| Rated Motor Capacity LD (kW) | 55 |
| Rated Motor Capacity ND (kW) | 45 |
| Rated Motor Capacity HD (kW) | 37 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES (OFF ON INITIAL SETTINGS) |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS |
| Leakage Current (mA) | 22 |
| Power Loss SLD (W) | 2120 |
| Power Loss LD (W) | 1900 |
| Power Loss ND (W) | 1610 |
| Power Loss HD (W) | 1300 |
| Protection Class | IP00 |
| Depth (mm) | 250 |
|---|---|
| Weight (kg) | 42 |
| Width (mm) | 435 |
| Height (mm) | 550 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 400 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 3120 |
| Steel (g) | 15 |
| Glass (g) | 0 |
| Other plastic (g) | 95 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 80-05-7, 25155-23-1, 15571-58-1, 13560-89-9, 1317-36-8, 127-19-5, 12626-81-2, 10141-05-6, 872-50-4, 84-61-7 |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
