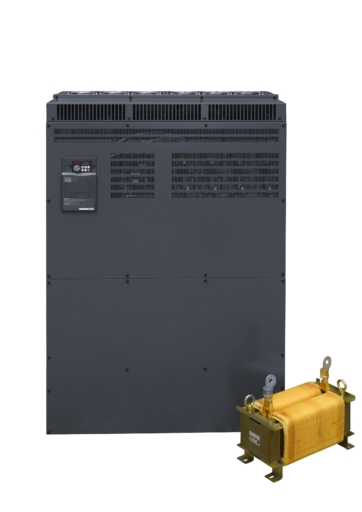

Material number 268860
Inverter; Rated Power: 560kW; 3x600-690V; Rated Current: 611A; IP00
| Series | FR-A700 SERIES |
|---|---|
| Type | FR-A700 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 600 |
| Min. Permissible Voltage (V) | 540 |
| Maximum Rated Voltage (V) | 690 |
| Max. Permissible Voltage (V) | 759 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 611 |
| Rated Motor Capacity ND (kW) | 560 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Power Loss ND (W) | 12500 |
| Protection Class | IP00 |
| Depth (mm) | 440 |
|---|---|
| Weight (kg) | 380 |
| Width (mm) | 995 |
| Height (mm) | 1580 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 670 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 10 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
