Material number 209738

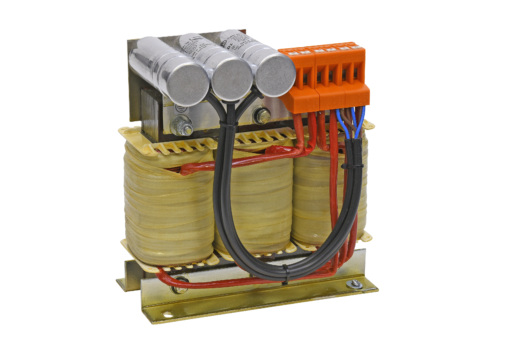

Sinusfilter for 200/230/400V Inverters;max. 25A;FT=4-16kHz;(W*H*D) 210*260*125mm
| Type | SINUSFILTER |
|---|---|
| Series | ALL |
| Rated Capacity (kW) | 200V: 5,5, 230V: 5,5, 400V: 11 |
| Rated Current (A) (fa_ger_79) | 25 |
| Power Loss (W) | 191 |
| Protection Class | IP00 |
| Depth (mm) | 125 |
|---|---|
| Weight (kg) | 15,7 |
| Width (mm) | 210 |
| Height (mm) | 270 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 10 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
