Material number 209745

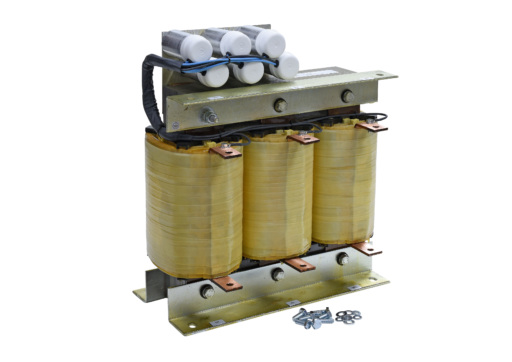

Sinusfilter;200/400V Inverters;max.180A;FT=2-16kHz;(W*H*D) 450*200/400*max.360mm
| Type | SINUSFILTER |
|---|---|
| Series | ALL |
| Rated Capacity (kW) | 200V: 45, 230V: -, 400V: 90 |
| Rated Current (A) (fa_ger_79) | 180 |
| Power Loss (W) | 700 |
| Protection Class | IP00 |
| Depth (mm) | 235 |
|---|---|
| Weight (kg) | 72,4 |
| Width (mm) | 420 |
| Height (mm) | 510 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 10 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 11000 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
