Material number 238371

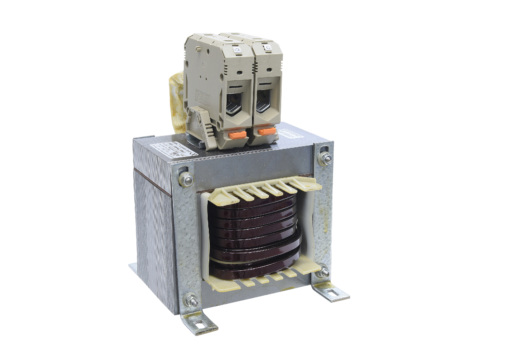

DC Link choke for 200V Inverter; 55kW; 0,13mH; 233A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-F800, FR-A741, FR-A800, FR-D700-SC, FR-E800 |
| Rated Voltage (V) | 200 |
| Current Type | DC |
| Inductance (mH) | 0,13 |
| Rated Capacity (kW) | 55 |
| Rated Current (A) (fa_ger_79) | 233 |
| Power Loss (W) | 65,5 |
| Protection Class | IP00 |
| Depth (mm) | 134 |
|---|---|
| Weight (kg) | 14,4 |
| Width (mm) | 150 |
| Height (mm) | 237 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
