Material number 238369

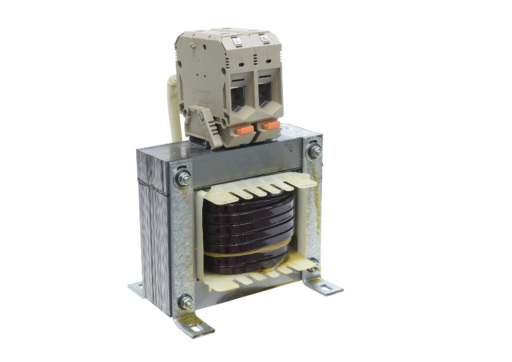

DC Link choke for 200V Inverter; 37kW; 0,2mH; 158A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Voltage (V) | 200 |
| Current Type | DC |
| Inductance (mH) | 0,2 |
| Rated Capacity (kW) | 37 |
| Rated Current (A) (fa_ger_79) | 158 |
| Power Loss (W) | 58,8 |
| Protection Class | IP00 |
| Depth (mm) | 114 |
|---|---|
| Weight (kg) | 10,7 |
| Width (mm) | 150 |
| Height (mm) | 237 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
